Beskrivning

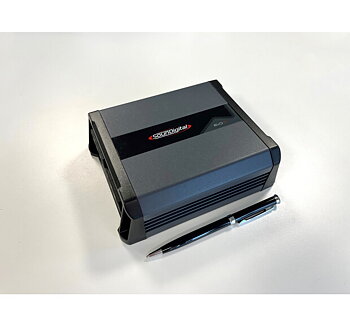

The 1200.1 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Tekniska data
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1200 WRMS
Power @ 4Ω: 1 X 792 WRMS
Frequency Response (-3dB): 5Hz ~ 25kHz Subsonic Filter: 5Hz ~ 80Hz Low Pass Filter: 50Hz ~ 1kHz Bass Boost: 0dB ~ 12dB @ 50Hz
Operating Voltage: 9V ~ 16V Signal-Noise Ratio: 95dB Input Sensitivity: 0.2V ~ 2V Current Draw (Music): 1Ω: 54A 2Ω: 52A Current Draw (Max): 1Ω: 108A 2Ω: 105A Total Efficiency: 1Ω: 88% 2Ω: 91% Damping Factor: 2000 Power Cable: 16mm² (5AWG) Audio Output Cable: 1Ω: 2 x 4 mm² (6 AWG) 2Ω: 2 x 2,5 mm² (13 AWG) Recommended Fuse (Music): 70A Recommended Battery: 70Ah
Width: 13.6 cm / 5.4 in Length: 18 cm / 7.1 in Height: 5.48 cm / 2.2 in Weight: 1,12 Kg.
