Beskrivning

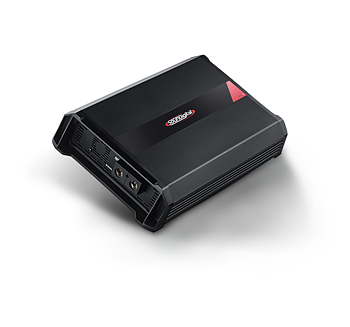

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system. The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.
Tekniska data
Compatible with SD-RLC Remote level control.
Power @ 12.6V @ 4Ω: 1 X 5280 WRMS
Power @ 12.6V @ 2Ω: 1 X 8000 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: N/A
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 1 X 5887 WRMS
Power @ 14.4V @ 2Ω: 1 X 8920 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: N/A
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V Current Draw (Music): 402 A Current Draw (Max): 804 A Recommended Fuse (Music): 500 A Total Efficiency: 79% Damping Factor: 1000
Frequency Response (-3dB): 5Hz – 500Hz SNR: 82dB Crossover HPF: 5Hz – 30Hz Crossover LPF: 50Hz – 500Hz THD + N (10% Rated Power): 0.08% Product Dimensions: 13.9 x 8.8 x 2.8 in Product Dimensions: 35.4 x 22.5 x 7.1 cm
Do not run your amp under rated impedance!
