Beskrivning

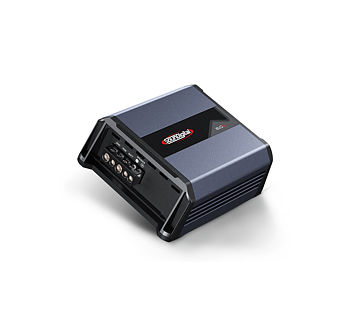

The 800.1 EVO 5 is a compact, modern amplifier that delivers 800W RMS of power distributed over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Tekniska data
Power @ 2Ω: N/A
Power @ 4Ω: 800W
Power @ 8Ω: 528W
Frequency Response: 10Hz ~ 20kHz Subsonic Filter (HP 12dB/8º): 10Hz ~ 80Hz Low Pass Filter (LP 12dB/8º): 50Hz ~ 20kHz
Operating Voltage: 8V ~ 16V
SNR: 2Ω: 96dB 4Ω: 97dB
Input Sensitivity (RCA): 0.2V ~ 4V
Input Sensitivity (High Level input): 1.5V ~ 15V
Current Draw (Music): 4Ω: 38A
Current Draw With Resistive Load (1kHz @ 12.6V): 4Ω: 77A
Total Efficiency: 4Ω: 78%
Damping Factor (@100Hz Rated Impedance): 200
Power Cable: 10mm² (7AWG) Audio Output Cable: 2 x 2mm² (12 AWG)
Recommended Fuse (Music): 40A
Recommended Battery (Music): 60Ah
Width: 4.4 in / 11,3 cm Length: 5.8 in / 14,8 cm Height: 2 in / 5,1 cm Weight: 1.54 lb / 0,7 Kg
