Beskrivning

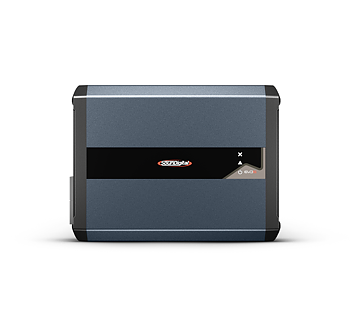

The 5000.1EVO 5 is a compact, modern amplifier that delivers 5000W RMS of power distributed over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Tekniska data
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 5000 WRMS
Power @ 4Ω: 1 X 3300 WRMS
Frequency Response (-3dB): 5Hz ~ 6kHz Low Pass filter (12dB/oct): 50Hz ~ 6kHz Subsonic (12dB/oct): 5Hz ~ 80Hz
Operating Voltage: 8V ~ 16V
SNR: 90dB
Input Sensitivity (RCA): 0.2V ~ 2V
Input Sensitivity (High Level input): 1.2V ~ 12V
Current Draw (music): 230A
Current Draw (max.): 461A
Total Efficiency: 86%
Damping Factor (@100Hz nominal impedance): 2000
Power Cable: 50mm² (0 AWG) Speaker Cable: 2 x 10mm² (7 AWG)
Recommended Fuse (music): 250A
Recommended battery (minimum): 250Ah
Width: 7.1″ / 18 cm Length: 9.9″ / 25 cm Height: 2.5″ / 6.32 cm Weight: 6.06 lb / 2,75 kg
